OctoYurt

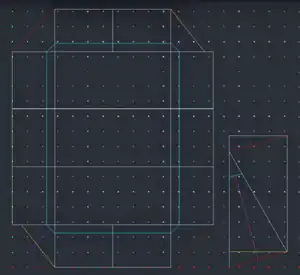

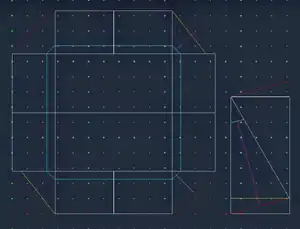

This is an alternative configuration I've come up with that has 175sqft of floor space compared to only 166sqft of a normal H12 hexayurt (5% better) while having double the amount of 6ft high standing room at 83sqft vs 41sqft of old H12. Only needs 2 panels cut in half vs 6 panels of a typical yurt. The ceiling is 7ft 5inches high over 64sqft of area.
ISO view of OctoYurt

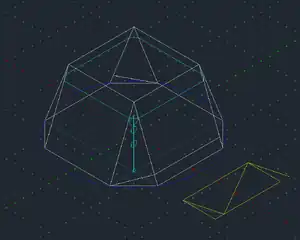

Isometric view of OctoYurt showing size compared to 6 foot human. — This is an alternative configuration I've come up with that has 175sqft of floor space compared to only 166sqft of a normal H12 hexayurt (5% better) while having double the amount of 6ft high standing room at 83sqft vs 41sqft of old H12. Only needs 2 panels cut in half vs 6 panels of a typical yurt. The ceiling is 7ft 5inches high over 64sqft of area.
ISO view of OctoYurt

This is the extended version that has 119sqft of standing room and 230sqft of floor space.

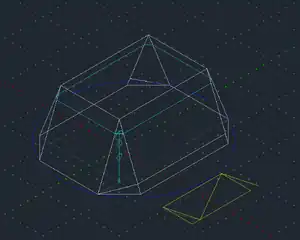

Isometric view of stretched OctoYurt compared to 6 foot human. — This is the extended version that has 119sqft of standing room and 230sqft of floor space.
