Cones

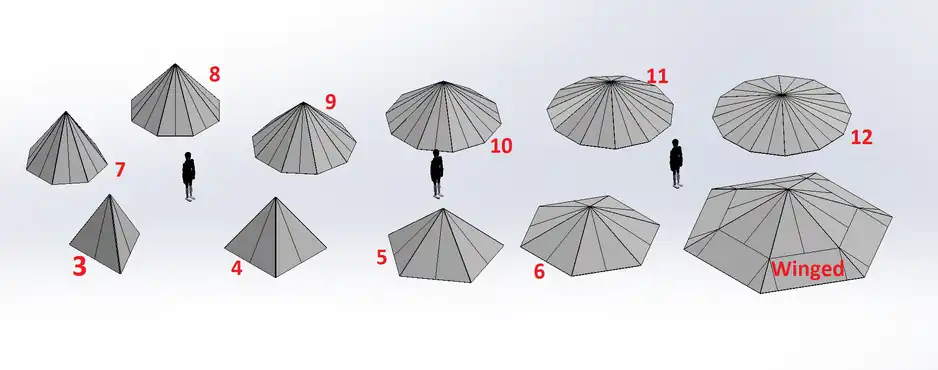

With triangles being a core part of the Hexayurt design, many different sided shapes become options. These shapes are mostly used as roof pieces to create yurts under by adding walls, but a key design consideration that can be seen is the expansion into Winged Designs.

Hexayurt project/Master List of Designs for more details
Technical Name H Name Total sheets Nickname Build Score Sqft Footprint Dia (ft) Height (ft) Waste Notes
Tricone H3 3 Triamid 4.33 27.71 9.33 7.66 No
Quadracone H4 4 Pyramid 9.73 64.00 11.50 6.93 No
Pentacone H5 5 Pentacone 10.95 110.11 13.83 5.86 No
Hexacone H6 6 Hexacone 5.62 166.28 16.17 4.00 No
Septacone H3.5 3.5 Septacone 0.49 58.14 9.33 6.84 Yes
Octacone H4 4 Octacone 1.11 77.25 10.67 6.38 No
Nonacone H4.5 4.5 Nonacone 0.53 98.91 11.83 5.81 Yes
Decacone H5 5 Decacone 0.92 123.11 13.00 5.11 No
Endecacone H5.5 5.5 Endecacone 0.31 149.85 14.33 4.20 Yes
Dodecacone H6 6 Dodecacone 0.24 179.14 15.50 2.88 No
4ft Winged Hexacone H13.5 13.5 4ft Winged Hexacone 7.53 374.10 24.00 6.00 No


The designs between 3-6 sides have easier to make triangles. Use a 4x8 sheet, cut across the diagonal, and join together. For the 7-12 sided designs, you need thinner triangles. Start with a 4x8 sheet, cut it in half to make 2x8 sheet, then cut the diagonals to make thin isosceles triangles.

The biggest problem with cones as a stand alone shelter is the angle of the wall. Having a slope makes it very difficult and impractical to add a door.

Hexacones

The Hexacone is the most widely used cone, as a roof for the Classic Hexayurt as well as the walls for the Quaddome. We will use it as an example to show to to make a proper folding cone.
