CCAT pedal grinder

Project data
Type Mechanical pedal powered devices
Pedal powered tool
Authors Bart Orlando
Location Arcata, California
Status Deployed
Years

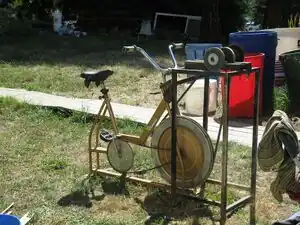

Bart Orlando demonstrates the pedal powered grinder which he designed and built with the assistance of HSU appropriate technology students. An exercise bike is substituted for the electric motor.

A fanbelt is wrapped around the outer circumference of the flywheel of the exercise bike and around a pulley mounted on the same drive shaft that the grinding stone and wire brush are mounted. The shaft is supported by two bearing assemblies. A 24 inch wheel rim is welded to the outer circumference of the flywheel in order to keep the belt on track.

Bart Orlando

[1]Click here to learn more about pedal power. [2] Click here to learn how to create pedal power. Click here to watch a demonstration
